Commercial, 40mm
The C2020 Commercial 40mm grille is a really astonishing selection that will fulfil your perspectives and needs.

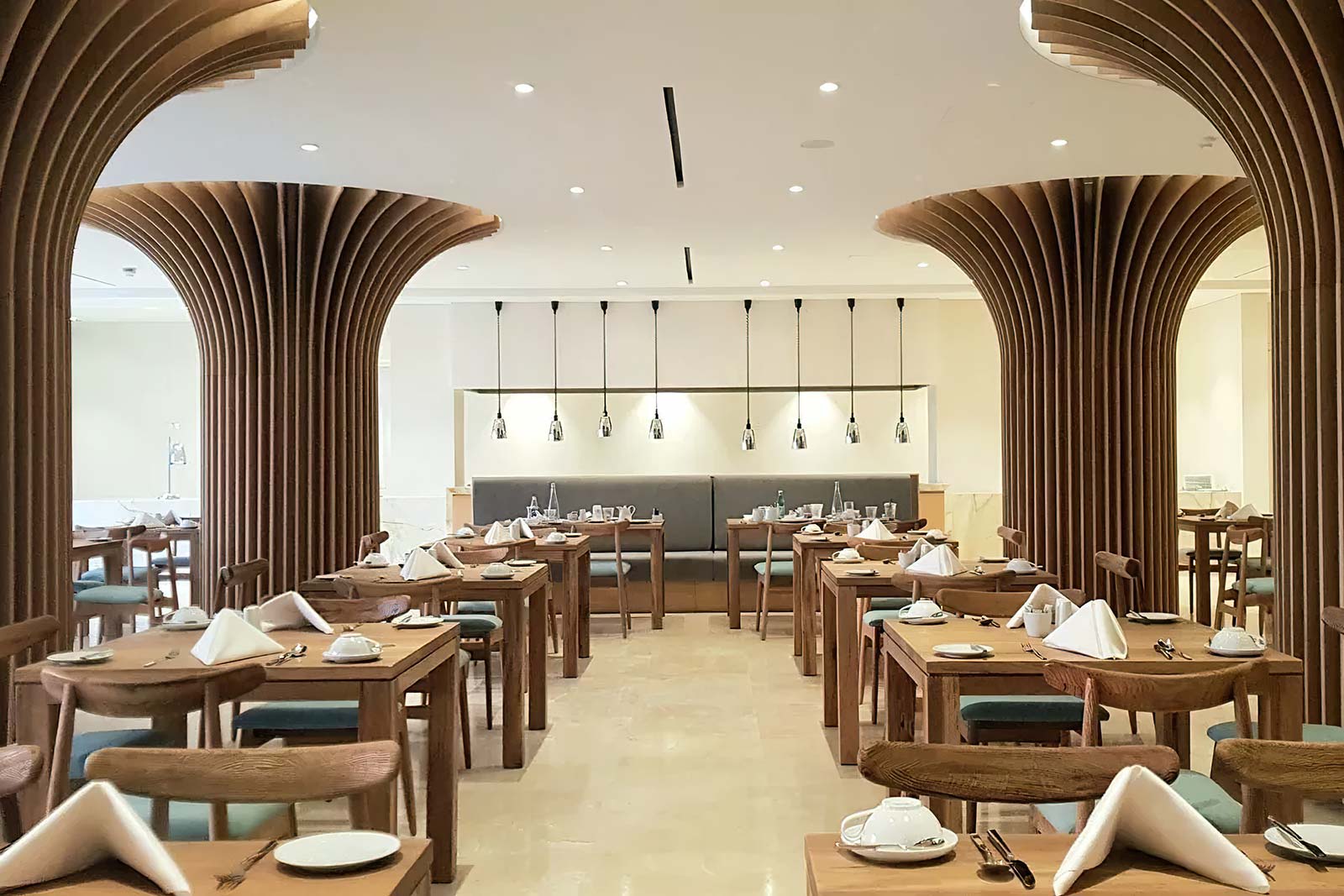

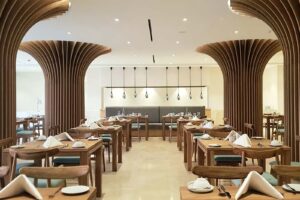

It responds to modern aesthetic trends with new innovative ways of support which is their special design. They have the property of not being easily noticed in the space. Its appearance is ideal for architectural applications. Fits perfect for Hotel Lobbies, Restaurants, Retail Shops and Gyms.
The available fixed length sizes are:
500mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm with the possibility of connecting pieces for unlimited length.
Let's get started with your Project
Our passionate team of experts are here to help in every step of the project. From your simple idea to realisation, we have the knowledge and experience to make it happen. Let's kick things off by a simple quote request.
Technical Specifications

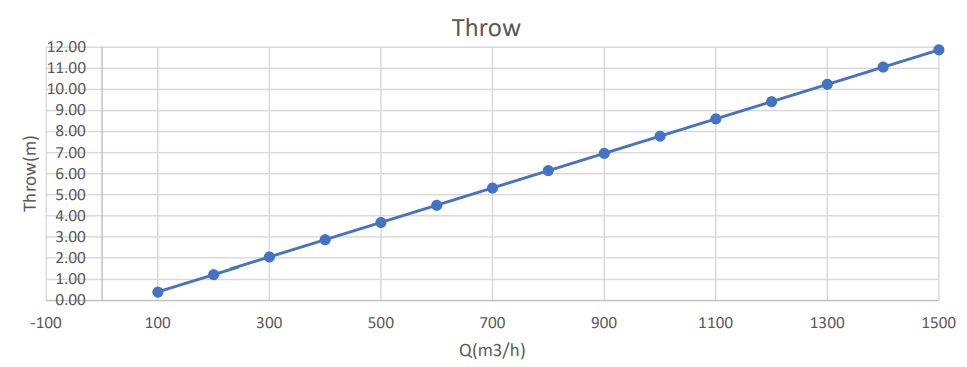

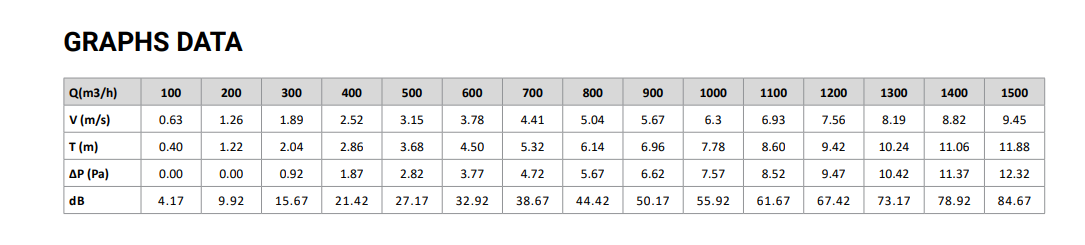

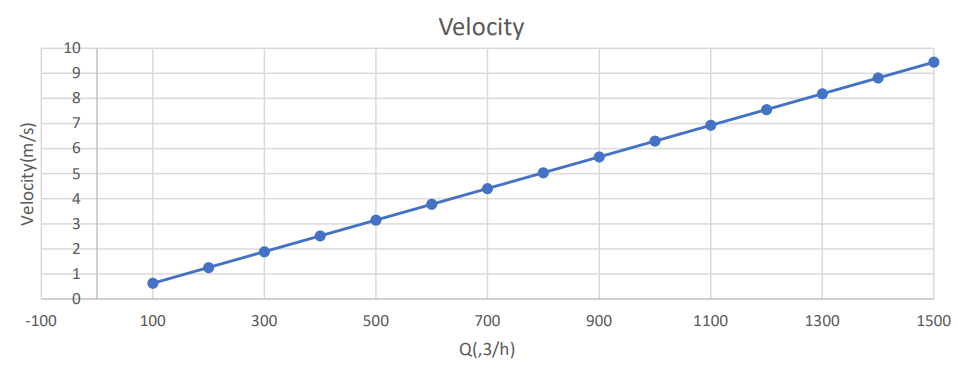

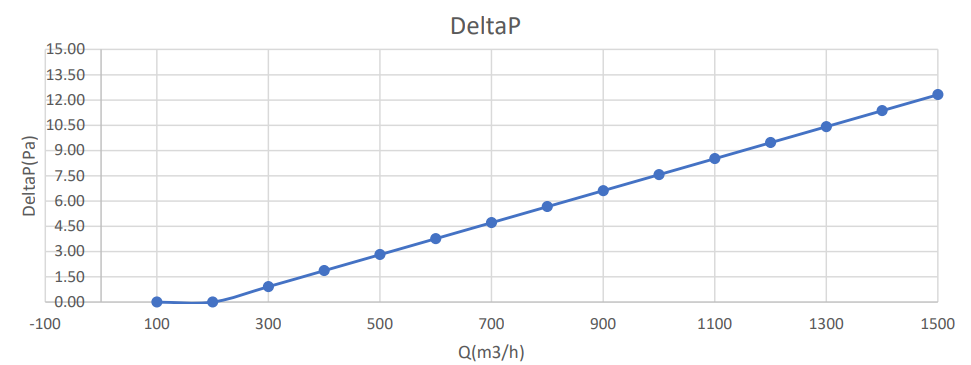

| Q(m3/h) | V (m/s) | T (m) | ΔP (Pa) | dB |
|---|---|---|---|---|
| 100 | 0.63 | 0.4 | 0 | 4.17 |
| 200 | 1.26 | 1.22 | 0 | 9.92 |
| 300 | 1.89 | 2.04 | 0.92 | 15.67 |
| 400 | 2.52 | 2.86 | 1.87 | 21.42 |
| 500 | 3.15 | 3.68 | 2.82 | 27.17 |
| 600 | 3.78 | 4.5 | 3.77 | 32.92 |
| 700 | 4.41 | 5.32 | 4.72 | 38.67 |
| 800 | 5.04 | 6.14 | 5.67 | 44.42 |
| 900 | 5.67 | 6.96 | 6.62 | 50.17 |
| 1000 | 6.3 | 7.78 | 7.57 | 55.92 |
| 1100 | 6.93 | 8.6 | 8.52 | 61.67 |
| 1200 | 7.56 | 9.42 | 9.47 | 67.42 |
| 1300 | 8.19 | 10.24 | 10.42 | 73.17 |
| 1400 | 8.82 | 11.06 | 11.37 | 78.92 |
| 1500 | 9.45 | 11.88 | 12.32 | 84.67 |

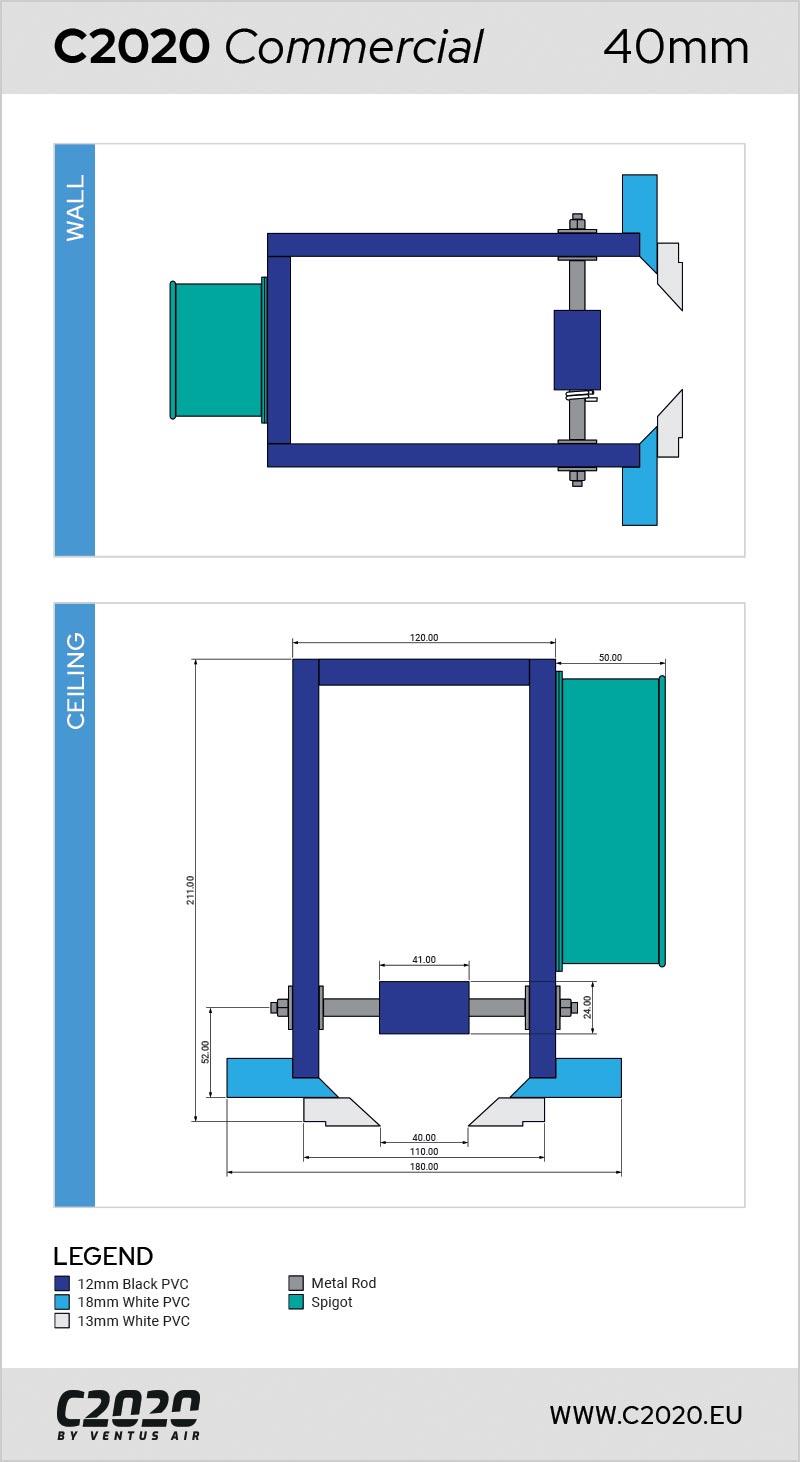

Wall

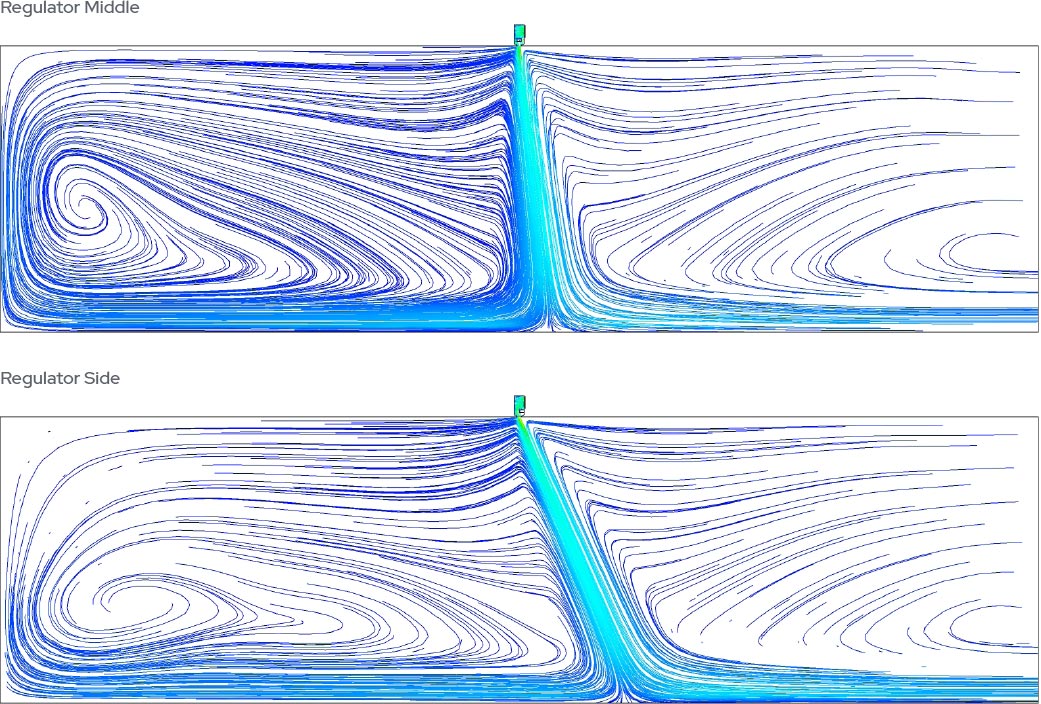

Ceiling
- Special Features:
- Standard sizes
- Air deflector
- Various ways of installation
- Low noise levels

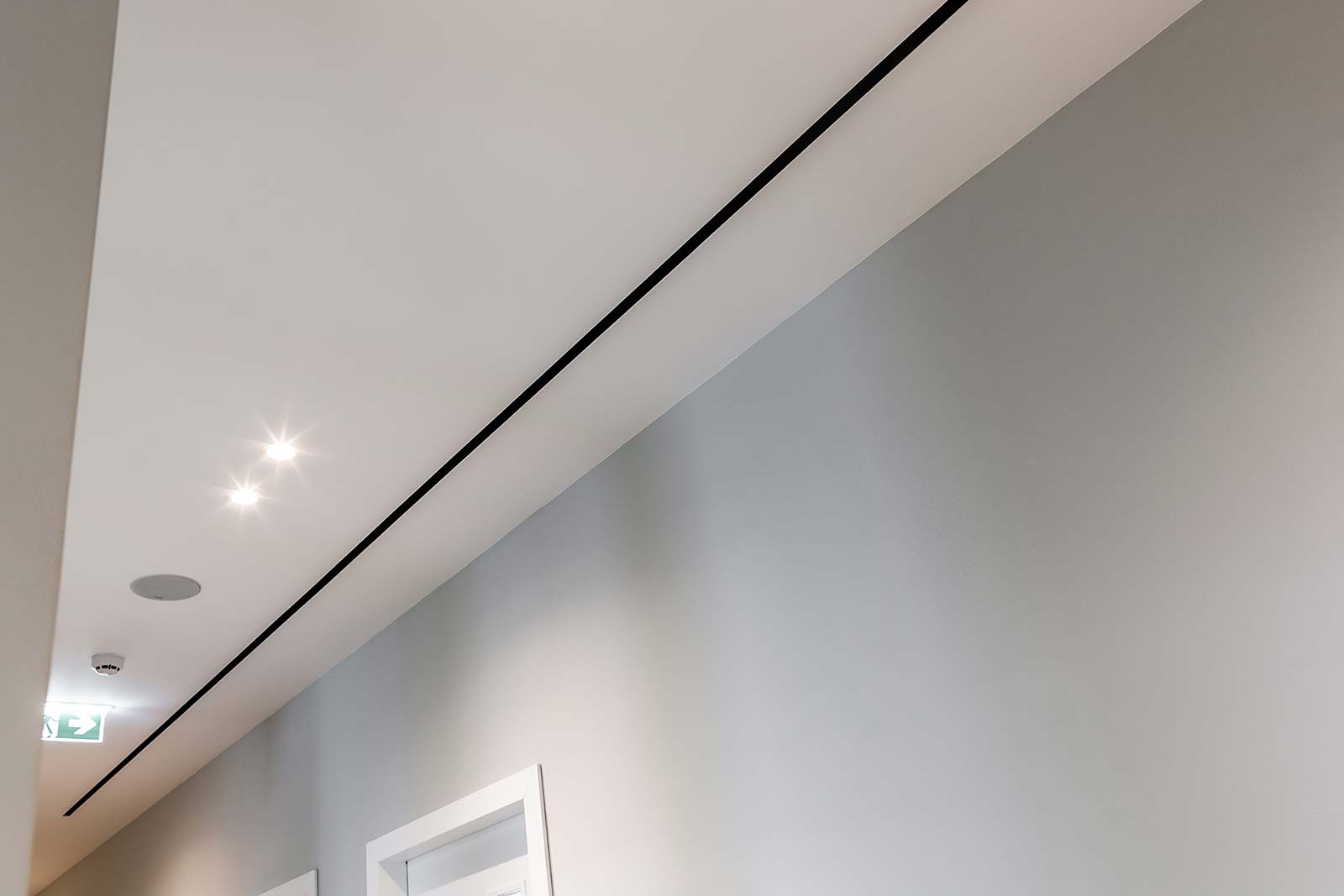

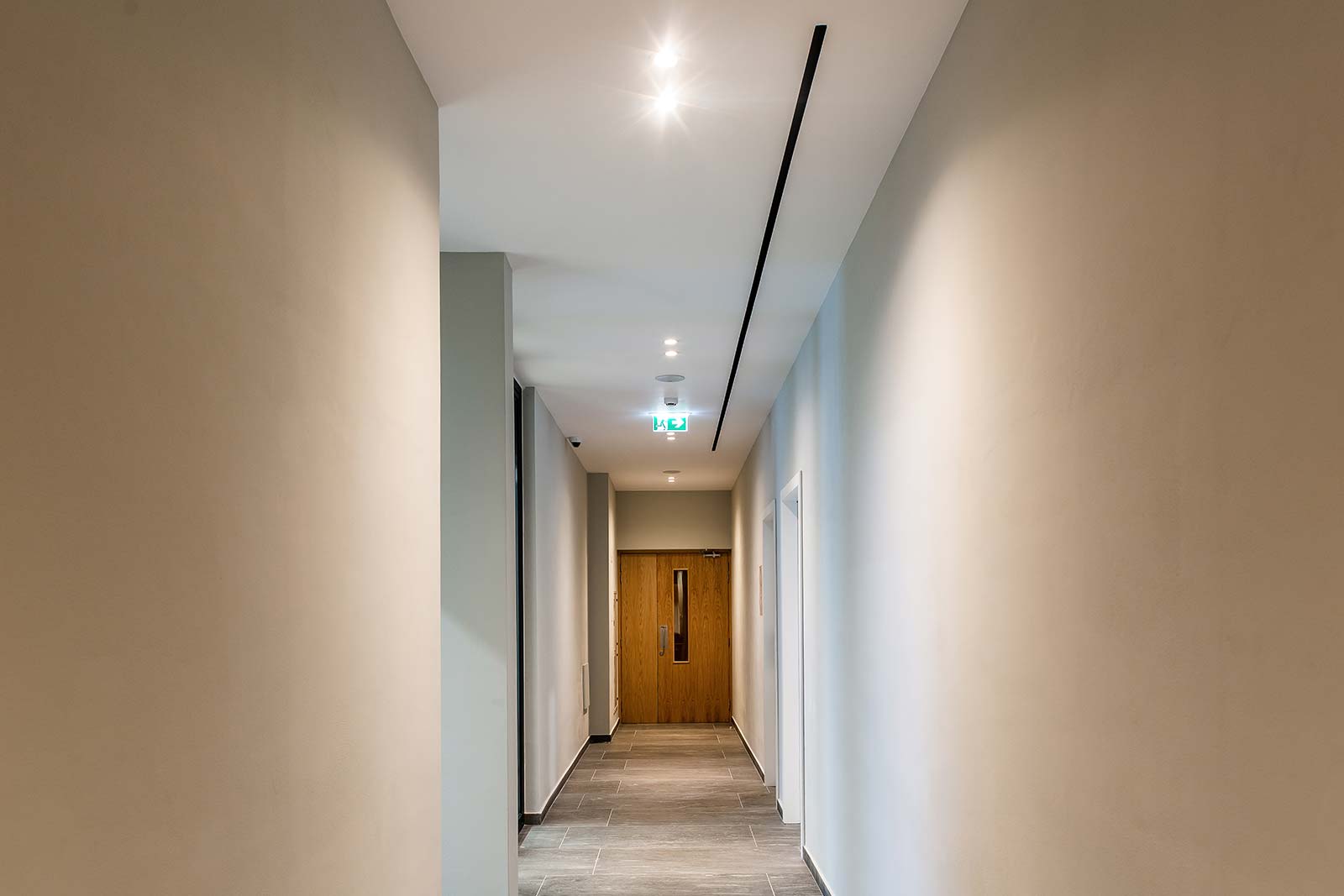

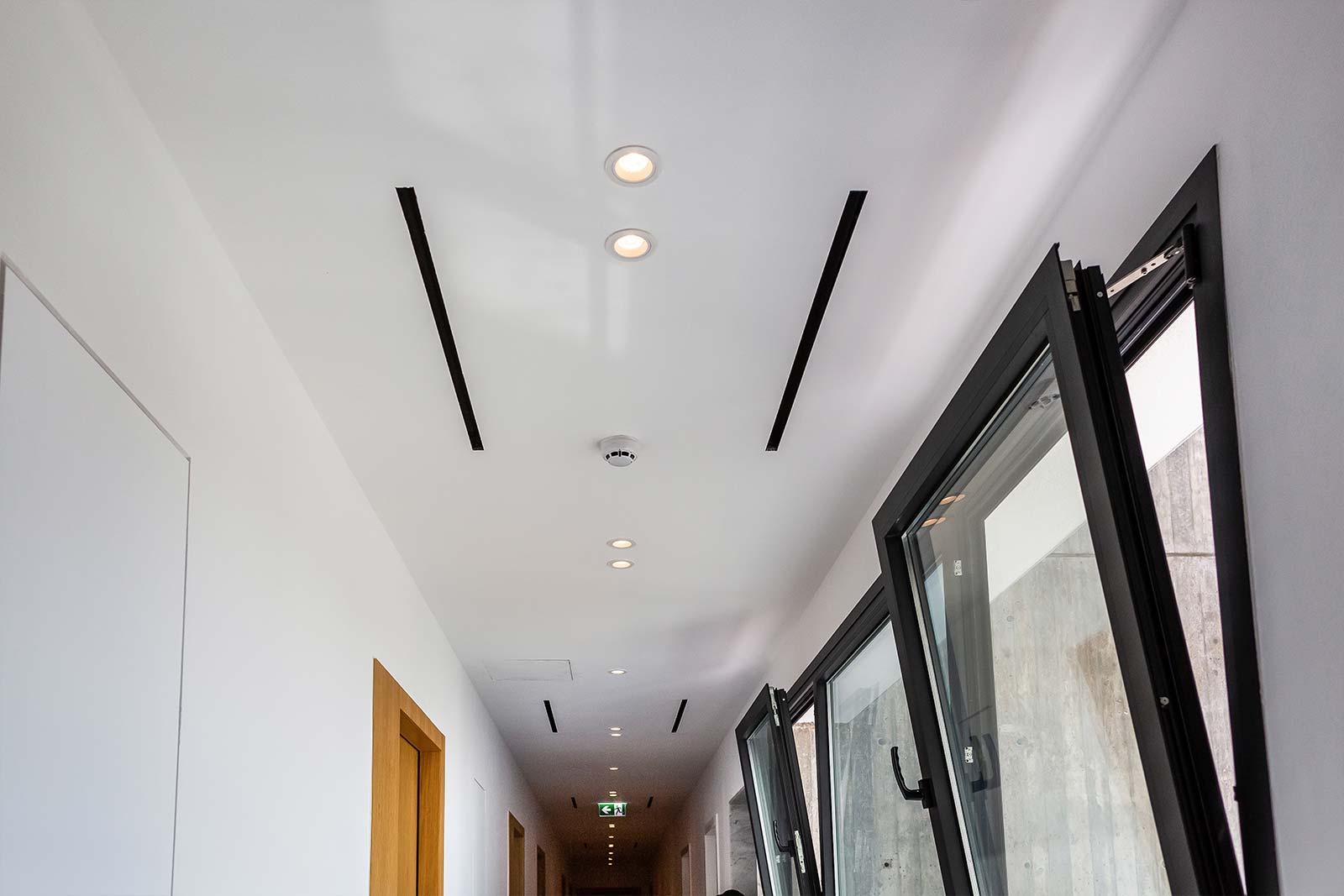

- Ideal solution for installation on the ceiling and on the wall (front)
