Installation - Finishing Process

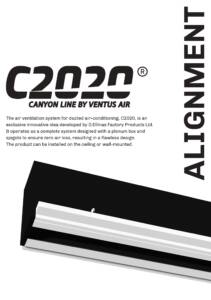

Download the manual

1

The installation occurs between the spaces of the metal gypsum board using threaded rods, according to specifications.

2

The entire system is aligned using a suture or laser.

3

Minor corrections are needed at the bottom part of the system for a perfect, elegant finish. At the connection points, slight sanding may be required using sandpaper.

4

The finishing process follows.

c2020

PVC TO GYPSUM BOARD JOINT PROCEDURE

Our main goal is to provide products with competitive prices, short delivery time and excellent services. Having established ourselves in the construction of the island. C2020 by Ventus Air Technologies and D. Ellinas Factory Products aspires to grow even more each year by being another creative “tool” for the lovers of modern design and innovative products.

Step 1

Use double-threaded screws to fasten the PVC grille in place, ensuring a tight fit along the gypsum board.

Step 2

Lightly scuff the PVC surface with sandpaper to create a rougher texture. Fill the small gap between the PVC surface and the gypsum board by applying a thin, even layer of the special joint filler compound.

Step 3

Immediately after step 2, while the compound is still wet, place and adhere a special fiberglass joint tape over it, and then allow it to dry.

Step 4

Apply a thin, even layer of the special joint filler compound over the fiberglass joint tape and allow it to dry.

Step 5

Using fine-grit sandpaper, sand the surface until it becomes smooth. It is then ready to be painted.
